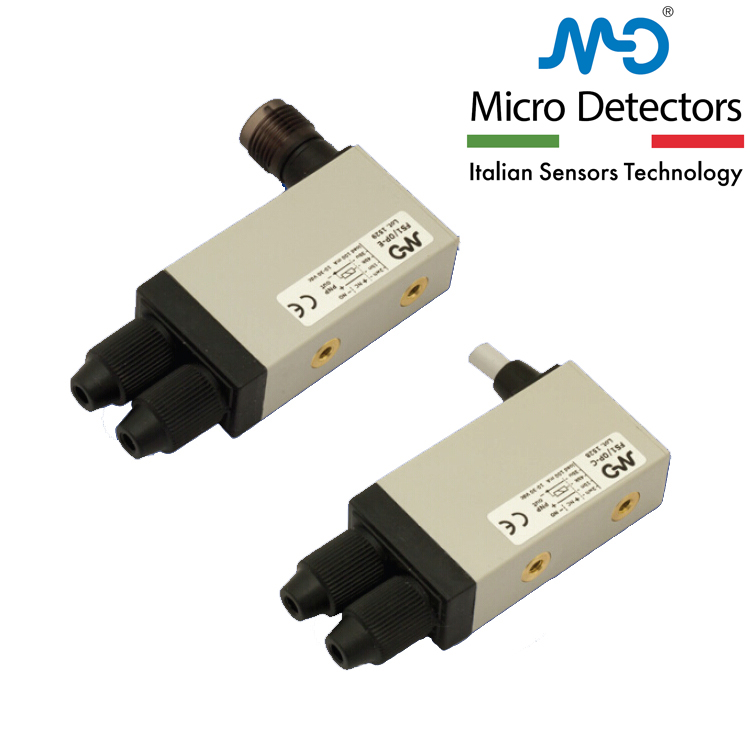

光纖放大器,光纖光電傳感器,FS1/0P-E,墨迪 Micro Detectors

產品性能:

    用于光纖的方形放大器控制單元-DC  Cubic amplifier unit for optical fibres - D

• 放大器裝置尺寸極小（僅為 49 x 26 x15 mm）Extremely reduced dimensions amplifier units (only 49 x 26 x15 mm)

• 徑向電纜出線方式或M12 接插件將外形尺寸減少到極小Right angle cable exit or M12 plug cable for reducing the overall dimensions at minimum

• 微調電位器進行靈敏度調節Trimmer for sensivity adjustment

• NO/NC 可選的 NPN 或 PNP 輸出 NPN or PNP outputs with selectable NO/NC

• 紅色光束光軸可見 Red light beam with visible spot

• 光纖產品范圍廣泛（塑料和玻璃）Wide range of optical fibres (plastics and glass)

• 完善的保護措施以避免電氣傷害 Complete protection against electrical damage

• 用 M4 螺絲固定(2xM4, 20 mm 間距)Fixing with M4 screws (2xM4, 20 mm step)

適用行業:
